- 17A-LCD
- 【Brief】：

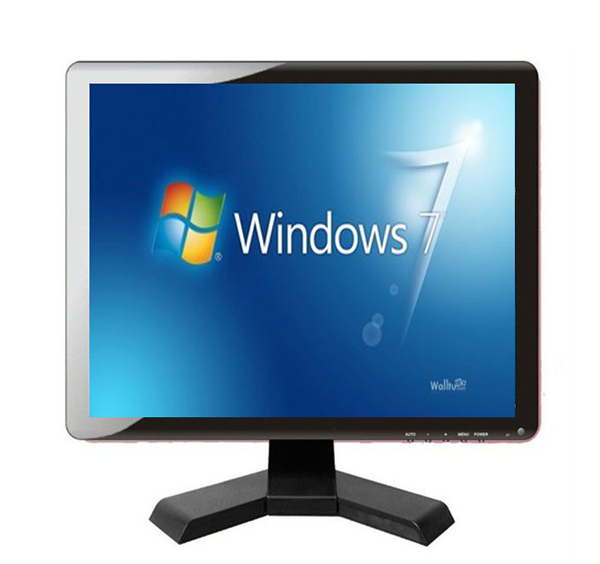

17inch TFT LCD Monitor
Resolution: 1280*1024
Panel: Samsung,LG,AUO
Brightness: 300
Quality: A Grade High Quality
Input:VGA (AV TV HDMI USB SD-Card Optional)
Warranty: One Year,Life-Long Maintenance
- 【Series】：LCD LED Monitor
| Panel size | 17 inch TFT-LCD |
| Visual size | 337*272mm |
| Standard Resolution | 1280*1024 |
| Number of Colors | 16.2M |
| Brightness | 300cd/m2 |
| Response time | 5ms |
| View angle | Horizontal:160° |
| Vertical:140° | |
| Contrase ratio | 800:01:00 |
| Video input format | (analog) RGB |
| Connector | VGA |
| Frequency | 30~80KHz/60~75Hz |
| Power supply | External Power Supply:100 to 240V (DC 12V) |
| Operation Environment | Workable Temperature:-10 to 60°C |
| Storage temperature:-20 to 70°C | |
| Operate relative humidity:20% to 80%; | |
| storage relative humidity:10% to 90% | |
| Net weight | 6.0 Kgs/pcs |
| Gross weight | 6.5 Kgs/pcs |
| Power consumption | Max 30W |
| Setup (optional) | 1) provide wall brackets for wall-mounting, VESA 75mm&100mm |
| 2) provide base to support the monitor | |
| OSD control | AUTO,+,POWER,-,MENU |
| brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset | |
| Certificate | FCC, ROHS |
| Warranty | 1 year,provide spare parts |
| Monitor size | 380*308*55mm |
| (not include base) | |
| Each unit box size | 436*139*429mm |
| Package size | 4pcs in a carton,carton size:650*450*420mm |
